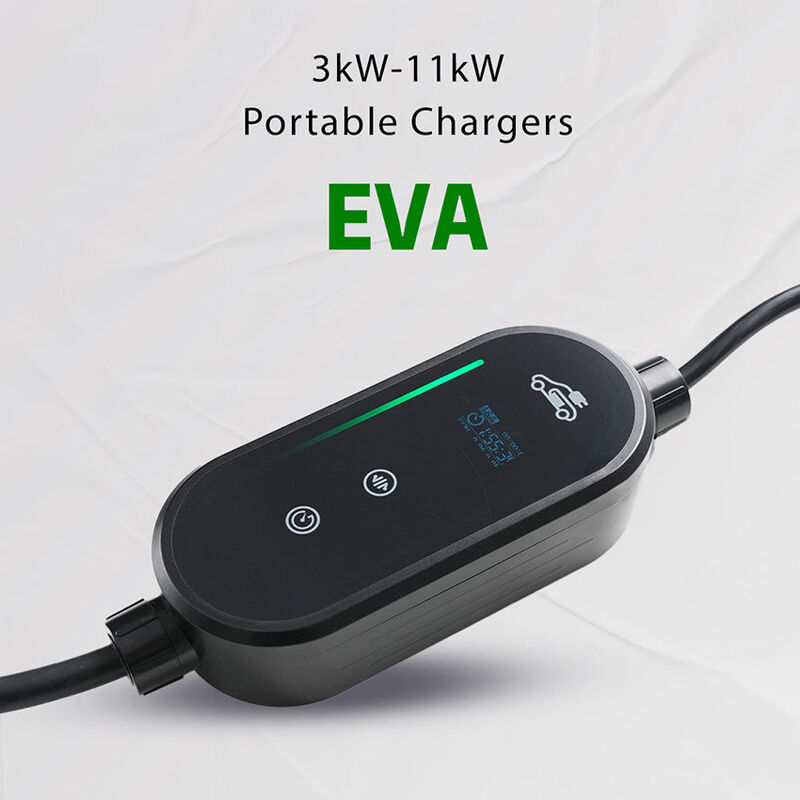

3 Phase 11kw Portable Home Ev Charger With CE Certification
Product Description
Designed for versatility, the EVA11B three-phase portable EV charger is perfect for home, workplace, and on-the-go charging. Its ability to support 400V three-phase input makes it suitable for regions with advanced electrical infrastructure, significantly reducing charging time compared to single-phase units.
The charger features user-friendly touch keys, bright LED indicators, and a clear OLED screen that displays essential charging data in real time. Users can easily adjust current levels and schedule charging sessions during off-peak hours for cost efficiency. Weighing only 3.2kg with a streamlined control box, it combines power with portability. Constructed with black tempered glass and PC materials, the EVA11B is not only durable but also aesthetically modern, making it the ideal choice for EV drivers who require high power, intelligence, and reliability in any setting.
Key Advantage
Adjustable current
Delay charging setting
LED Light and Touch Key
Built-in RCD type B
Specificaiton
| Product Model EVA11B | |
| Input/Output voltage | AC 400V |
| Input frequency | 50/60Hz |
| Max.output power | 3-Phase up to 11kW(@400V 16A) |
| Max.output current | 16A for 3- Phase |
| Standard | IEC 62752:2016/COR1:2019 |
| Protection | |
| Certificate | CE |
| Over voltage protection | Yes |
| Under voltage protection | Yes |
| Over load protection | Yes |
| Short circuit protection | Yes |
| Leakage protection | Yes |
| Over - temp protection | Yes |
| Lightning protection | Yes |
| Function and Accessory | |
| LED indicators | Yes |
| OLED screen | Yes |
| RCD | Type B |
| Current adjustment | Yes |
| Delay charging adjustment | Yes |
| Ethernet/WIFI/4G/Bluetooth | No |
| Working environment | |
| Protection degree | IP 67 |
| Operation temperature | -30℃ - 60℃ |
| Relative humidity | ≤95%RH |
| Operating elevation limit | ≤2000m |
| Cooling | Natural air cooling |
| Standby power consumption | <0.5W |
| Mechanical parameters | |
| Charging cable | 5m (Standard configuration) |
| Control box | H×W×D = 200mm×90mm×52mm |
| Weight | ≤3.2kg |
| Colour&Material | Black;Tempered Glass,PC |
LED Indicators
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
6. Change current: 8A 10A 13A 16A
How to install
Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.
Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping
screws.
Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.
Installation cases
Packaging
Our Certification
Exhibition
Visits from Various Countries (looking forward to your arrival)
|
|
