| Tên thương hiệu: | ANS |
| Số mẫu: | EVA07B |
| MOQ: | 1 |
| Chi tiết bao bì: | 15,7 * 15 * 3,15 (trong) |
| Điều khoản thanh toán: | L/C, T/T, Liên minh phương Tây |
IP67 7kw CE Portable Home Ev Charger With Standard configuration 5m Charging cable
Product Description
Built to perform in diverse conditions, the EVA07B Portable ev charger operates efficiently between -30°C and 60°C with a relative humidity of up to 95%. Its IP67 rating ensures dust and water resistance, ideal for outdoor use. Natural air cooling maintains optimal temperature during operation, while standby power consumption remains below 0.5W. With a maximum operating elevation of 200mm, it is suitable for various terrains. These features make it a robust and energy-efficient choice for eco-conscious EV drivers who need reliable charging anywhere.
Key Advantage
Adjustable current
Delay charging setting
LED Light and Touch Key
Built-in RCD type B
Specificaiton
| Product Model EVA07b | |
| Input/Output voltage | AC 110V/230V |
| Input frequency | 50/60Hz |
| Max.output power | 1 - Phase up to 7.4kW(@230V 32A) |
| Max.output current | 32A for 1 - Phase |
| Standard | IEC 62752:2016/COR1:2019 |
| Protection | |
| Certificate | CE |
| Over voltage protection | Yes |
| Under voltage protection | Yes |
| Over load protection | Yes |
| Short circuit protection | Yes |
| Leakage protection | Yes |
| Over - temp protection | Yes |
| Lightning protection | Yes |
| Function and Accessory | |
| LED indicators | Yes |
| OLED screen | Yes |
| RCD | Type B |
| Current adjustment | Yes |
| Delay charging adjustment | Yes |
| Ethernet/WIFI/4G/Bluetooth | No |
| Working environment | |
| Protection degree | IP 67 |
| Operation temperature | -30℃ - 60℃ |
| Relative humidity | ≤95%RH |
| Operating elevation limit | ≤2000m |
| Cooling | Natural air cooling |
| Standby power consumption | <0.5W |
| Mechanical parameters | |
| Charging cable | 5m (Standard configuration) |
| Control box | H×W×D = 200mm×90mm×52mm |
| Weight | ≤2.9kg |
| Colour&Material | Black;Tempered Glass,PC |
Features

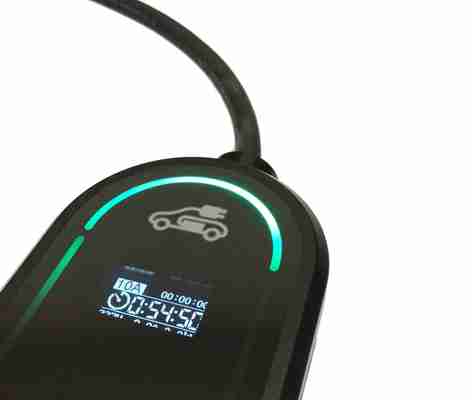

LED Display:
1. Charging Temperature
2. Charging Current
3. Charging Voltage
4. Energy Charged in KW/h
5. Charged time.
6.Set Current
7. Charging speed in KW
LED Indicators
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
6. Change current: 8A 10A 13A 16A
How to install
Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.
Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping
screws.
Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.
Packaging
Our Certification
Exhibition
Visits from Various Countries (looking forward to your arrival)
|
|
